Ribbon charts comparing chromosomes across species

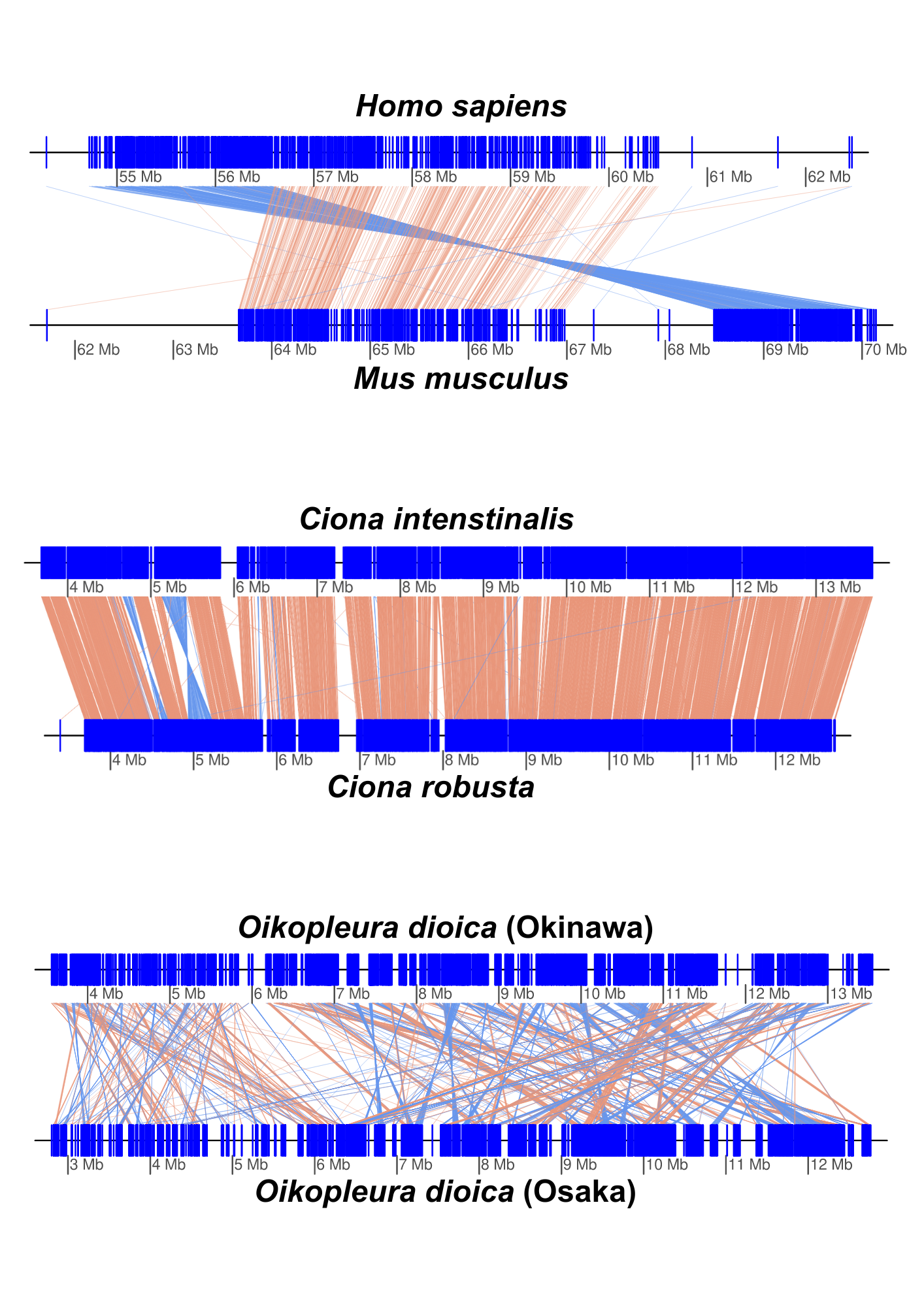

Ribbon charts comparing chromosomes across species: human vs. house mouse, two species of Ciona sea squirts, and two Oikopleura dioica lineages. Black lines depict chromosomes, lengths measured in megabase pairs (Mb), here used to indicate the coordinates of the genes on the chromosomes. Blue boxes represent matching regions between chromosomes. Orange ribbons denote matches with the same gene order, while blue ribbons indicate reversed order. Credit: Charles Plessy (OIST)
